Laser Cutting Assessment 2025
Key Takeaways
- Laser cutting machines can be expensive, with costs ranging from $50,000 to over $300,000. Consider budget constraints before investing.
- Material thickness limits vary by machine type. Understand these limits to choose the right technology for your projects.
- Harmful emissions from laser cutting can pose health risks. Implement emission control technologies to protect workers and the environment.

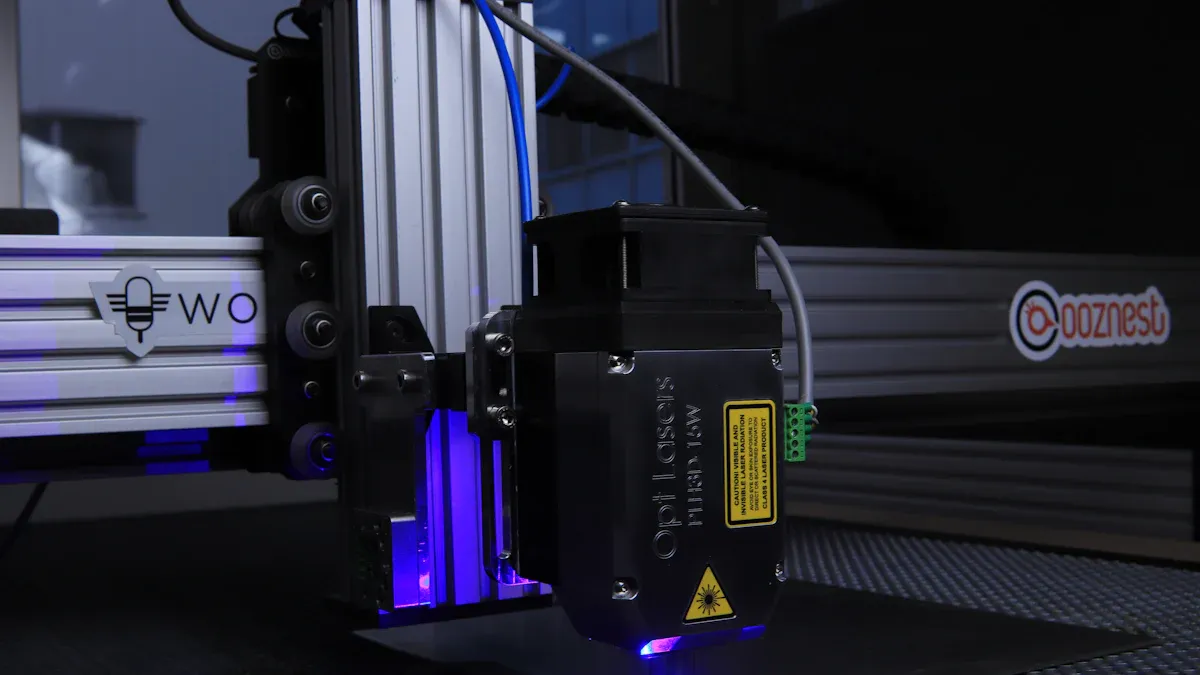

Limitations in Material Thickness
Laser cutting technology excels in precision and speed, but it faces significant limitations when it comes to material thickness. As I explore this topic, I find that the maximum thickness a laser cutting machine can handle varies based on the type of machine and the material being cut. For instance, CO₂ and fiber lasers have different capabilities, which can impact the choice of technology for specific projects.
Here’s a breakdown of the maximum material thickness that various laser cutting machines can effectively handle:
| Laser Cutting Machine | Material Type | Maximum Thickness |
|---|---|---|
| 3 kW Light Cutter | Mild Steel | 20 mm |
| Stainless Steel | 10 mm | |
| 4 kW Light Cutter | Mild Steel | 24 mm |
| Stainless Steel | 12 mm | |
| 6 kW Pro Cutter | Mild Steel | 25 mm |
| Stainless Steel | 16 mm | |
| Fiber Laser FOL-3015AJ | Mild Steel | 22 mm |
| Stainless Steel | 18 mm | |
| Aluminum | 16 mm | |
| Brass | 8 mm | |
| Copper | 8 mm | |
| Hindcam 6KW | Mild Steel | 30 mm |
| Stainless Steel | 30 mm | |
| Brass | 30 mm |
As I analyze these figures, I notice that thicker materials often require slower cutting speeds. This adjustment is necessary to maintain edge quality and reduce dross formation. For example, cutting 20 mm steel necessitates a slower speed to achieve clean cuts. Similarly, when working with 25 mm stainless steel, I must enhance precision settings to avoid rough edges.
The challenges become even more pronounced with certain materials. For instance, stainless steel can present issues such as edge roughness and heat-affected zones, which slow down production speeds. Aluminum, on the other hand, poses reflectivity issues that can complicate the cutting process. Copper is particularly challenging, as fiber lasers can only manage thicknesses up to 15 mm, while CO2 lasers are limited to 10 mm.
In comparison to alternative cutting technologies, laser cutting is limited to thinner materials. Plasma cutting can handle up to 1.5 inches of thickness, while waterjet cutting can manage virtually any thickness, cutting up to 15 inches while maintaining tight accuracy on thicknesses of 4 inches or less. This limitation can restrict the applications of laser cutting, especially in industries that require the processing of thicker materials.
Harmful Emissions
As I delve into the topic of harmful emissions from laser cutting, I recognize that this aspect poses significant concerns for both operators and the environment. During the cutting process, various materials release toxic fumes and particulates. These emissions can have serious health implications for workers and can also contribute to environmental pollution.
Here’s a summary of the harmful emissions produced when cutting different materials:
| Material | Harmful Emissions |
|---|---|
| ABS | Cyanide, β-methyl styrene, phenol, phenyl cyclohexane, benzene derivatives |
| PVC | Chlorine gas, hydrogen chloride |
| Epoxy | H₂, CO, CH₄, C₂H₆, C₂H₄, C₃H₆, C₃H₈ (notably excluding HCN) |
From my observations, the concentrations of hazardous gases released during laser cutting operations can vary significantly. For instance, I found that:
| Substance | Measured Concentration (ppm) | Source |
|---|---|---|
| Methyl Methacrylate (MMA) | Indoor: 0.5, Outdoor: 1.3 | Laser cutting operations |
| Particulate Matter | Peaks at 27.4–36.4 nm, 2821–3057 particles/cm³ | After lid opened |
| Permissible Exposure Limit (PEL) | 100 ppm | OSHA |
The health risks associated with these emissions are alarming. Inhalation of fumes can lead to various health problems, including:
- Respiratory issues (coughing, wheezing)
- Long-term respiratory complications from chronic exposure
- Cardiovascular diseases (hypertension, strokes)
- Neurological issues (headaches, cognitive impairment)
- Reproductive health issues (infertility, birth defects)
Moreover, direct exposure to laser beams can cause burns, skin aging, and eye damage. Chronic exposure to particulate matter and volatile organic compounds (VOCs) can lead to severe conditions such as cancer and neurological disorders.
To mitigate these risks, many facilities implement effective emission control technologies. Here are some of the most common methods:
| Technology Type | Advantages |
|---|---|
| Electrostatic Filtration | - Can be cleaned and reused, reducing replacement costs. |
| - High removal rates of soot and smoke particles at the submicron scale. | |
| - Minimal airflow loss when dirt accumulates on the filter. | |
| Mechanical Filtration | - Requires regular maintenance to maintain high removal rates. |
| - Primarily designed for fine particles, not suitable for gases or vapors. | |
| Multi-stage Filtration | - Combines physical methods and activated carbon to remove particulates and other pollutants. |
High Energy Consumption
When I evaluate the energy consumption of laser cutting, I find it to be a significant concern for manufacturers. While laser cutting is known for its precision and speed, it can also lead to high operational costs due to energy usage. For instance, CO₂ laser cutting machines typically consume between 1 and 3 kW of electricity, resulting in operating costs of approximately $0.10 to $0.60 per hour. In contrast, fiber laser cutting machines can vary widely in power consumption. Lower-power machines (1-3 kW) cost about $0.90 to $3.60 per hour, while higher-power machines (10-60 kW) can incur costs ranging from $26 to $52 per hour.
I also notice that the energy efficiency of laser cutting compares favorably to other cutting technologies. For example, waterjet cutting requires high-pressure pumps, leading to higher power consumption. Plasma cutting, while less precise, also consumes more energy than laser cutting. In my experience, fiber laser cuttingstands out for its efficiency. It provides extremely precise cuts and can handle intricate designs while requiring less setup time. A modern fiber Laser Cutter can process thin sheets of metal at speeds up to 1,500 inches per minute, resulting in shorter production times and lower labor costs.
However, I must acknowledge that the energy consumption of laser cutting machines varies significantly. Fiber laser cutters have a photoelectric conversion efficiency of up to 25%, while CO₂ laser cutters only achieve about 10%. This difference highlights the importance of choosing the right platform Laser Machine for high-volume production, as machines with higher energy efficiency can significantly lower operating costs.
Need for Technical Expertise
Operating and maintaining modern laser cutting machines demands a high level of technical expertise. I have observed that successful operators must possess a strong understanding of various laser cutting parameters, including power, speed, and focal length. This knowledge is crucial for achieving optimal results.
To ensure smooth operations, I regularly perform several maintenance tasks. These include:
- Inspecting internal components such as power supplies and wiring.
- Testing and recalibrating beam alignment to maintain consistent output.
- Checking laser power output using specialized tools.
- Replacing aging consumables like filters and belts.
- Reviewing firmware and software for updates.
Moreover, operators need to be familiar with safety protocols and regulations. I find that continuous learning is essential to keep up with technological advancements in the field.
Training programs play a vital role in developing these skills. Here’s a summary of some common training programs available for laser cutting machine operators in 2025:
| Training Program | Duration | Target Audience | Key Topics |
|---|---|---|---|
| Level 1: Machine Fundamentals | 2 days | Beginners | Machine operation, setup, basic G and M codes |
| Level 2: Optimization & Application Strategies | 2 days | Experienced operators | Advanced NC features, troubleshooting, unique setup strategies |
| ADHMT Basic Training | Varies | All levels | Safety protocols, machine setup, software navigation |
| ADHMT Advanced Certifications | Varies | Experienced operators | Complex operations, multi-axis cutting, exotic material processing |
In my experience, new operators typically require 2-3 weeks of traditional training to become proficient with advanced laser cutting equipment. This investment in training ensures that operators can effectively troubleshoot common challenges, such as material compatibility and managing the heat-affected zone (HAZ).
In summary, laser cutting technology faces several key disadvantages, including limitations on material thickness, harmful emissions, high energy consumption, and the need for technical expertise. Looking ahead, advancements like AI integration, enhanced energy efficiency, and multi-material capabilities promise to address these challenges and improve the technology's viability in manufacturing.
FAQ
What materials can I cut with laser technology?
I can cut various materials, including metals.Each material has specific thickness limitations.
How do I manage harmful emissions during laser cutting?
I implement effective emission control technologies, such as electrostatic filtration, to minimize harmful emissions and protect workers.
What training do operators need for laser cutting machines?
Operators require training in machine fundamentals, optimization strategies, and safety protocols to ensure efficient and safe operations.
