Unveiling the Mechanics of Single Platform Laser Cutting Technology
Single-platform laser cutting technology represents a significant advancement in manufacturing. This technology streamlines processes, improving efficiency and accuracy. The market for single platform laser cutting machines is projected to reach USD 14.14 billion by 2032, growing at a 10.9% CAGR. Industries like automotive and aerospace utilize this technology for precise cutting applications.
Key Takeaways
- Single-platform laser cutting technology enhances manufacturing efficiency and accuracy, making it ideal for industries like automotive and aerospace.
- These machines achieve exceptional precision, with fiber lasers reaching levels of ±0.03mm, ensuring high-quality cuts for intricate designs.
- Versatility in material processing allows for cutting various materials, including metals and polymers, catering to diverse client needs.
Mechanics of Single-Platform Laser Cutting
Key Components
The efficiency and effectiveness of a single-platform laser cutting machine rely heavily on its key components. Each part plays a vital role in ensuring optimal performance. Here’s a breakdown of these components and their contributions:
| Component | Function | Contribution to Performance |
|---|---|---|
| Laser Generator | Produces the high-power density laser beam used for cutting. | Essential for generating the energy required for effective cutting. |
| Optical Path System | Guides the laser beam using mirrors. | Ensures the laser beam maintains its quality and direction, crucial for precision. |
| Cutting Head | Directs the laser and gas flow for precise cutting. | Allows for accurate material processing and adjustments during cutting. |
| Machine Bed | Supports the entire system and ensures stability. | Provides a solid foundation for precise movements and alignment. |
| CNC System | Controls the movement of the cutting head. | Enables automated and precise cutting operations. |
| Motors | Drive the movement of the cutting head and bed. | Essential for achieving high-speed and accurate cuts. |
| Auxiliary Gas System | Supplies gas for cutting and cooling. | Enhances cutting efficiency and protects components from heat. |
Working Principles
The working principle of single-platform laser cutting technology is fascinating. It involves focusing a high-energy laser beam onto the material, which melts or vaporizes it. This process allows for precise cuts with minimal waste. The laser beam's energy transfer is crucial for maintaining material quality and cut precision.
Here’s a comparison of the working principles between single-platform and exchange platform laser cutting:
| Feature | Single-Platform Laser Cutting | Exchange Platform Laser Cutting |
|---|---|---|
| Worktable | Fixed worktable where material is placed | Dual-table system for continuous operation |
| Laser Head Movement | Moves across the stationary platform | One platform cuts while the other is loaded/unloaded |
| Manual Intervention | Requires manual removal of cut pieces | Automatic switching of tables for continuous work |
Laser Types Used
In single-platform laser cutting machines, various laser types are employed, each with its unique advantages and applications. The most commonly used lasers include:
- CO2 Lasers: Effective for non-metallic materials and low-reflectivity metals. They can process a wide range of materials, including wood, leather, and glass.
- Fiber Lasers: Excel in cutting high-reflectivity materials and offer high precision. They are suitable for metals like aluminum and copper.
- Nd:YAG Lasers: Ideal for high-precision tasks such as marking and engraving. They can cut metals and some non-metallic materials.
| Laser Type | Advantages | Disadvantages |
|---|---|---|
| CO2 Lasers | Suitable for non-metallic materials and low-reflectivity metals. | Cannot process bare metals directly. |
| Can process a wide range of materials including wood, leather, and glass. | Requires paint for metal processing. | |
| Fiber Lasers | High cutting precision and suitable for high-reflectivity materials. | Generally more expensive than CO2. |
| Long service life and low maintenance requirements. | Limited to specific applications. | |
| Nd:YAG Lasers | High precision for marking and engraving. | More complex and costly setup. |
| Can cut metals and some non-metallic materials. | Less versatile than CO2 lasers. |
Understanding these components, principles, and laser types enhances my ability to provide tailored solutions for clients seeking single-platform laser cutting services. My professional design team and processing center are equipped to meet diverse manufacturing needs.

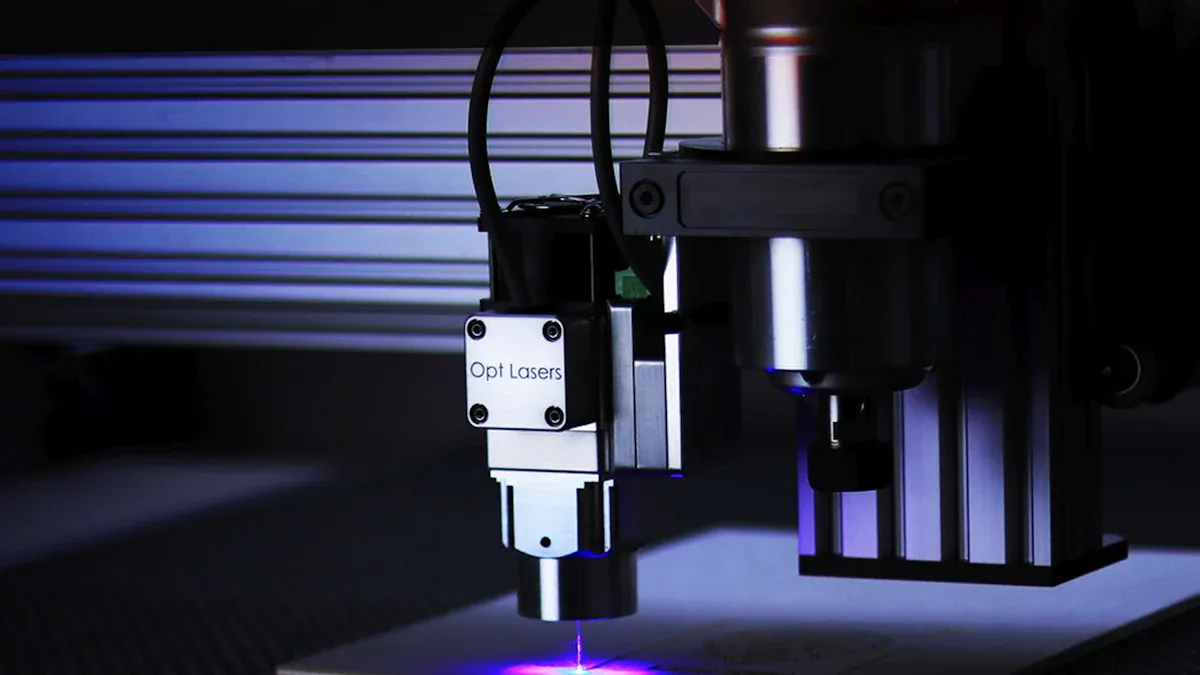

Advantages of Single-Platform Laser Cutting Machines
Precision and Accuracy
One of the standout features of single-platform laser cutting machines is their exceptional precision and accuracy. I have witnessed firsthand how these machines can achieve remarkable levels of detail in cutting. For instance, fiber lasers can reach a precision level of ±0.03mm, while CO2 lasers typically range from ±0.05mm to ±0.1mm. This level of accuracy surpasses many industry standards, making these machines ideal for intricate designs and components.
| Laser Type | Precision Level |
|---|---|
| Fiber Laser | ±0.03mm |
| CO2 Laser | ±0.05mm to ±0.1mm |
| Nd:YAG Laser | ±0.05mm |
To maintain this high level of precision, several factors come into play. I ensure that I implement a structured preventive maintenance schedule to check for worn-out components. Additionally, I maintain a controlled environment to minimize the impact of temperature and humidity on cutting quality. Regular calibration and operator training also play crucial roles in achieving consistent results.
Speed and Efficiency
Speed and efficiency are critical in modern manufacturing, and single-platform laser cutting machines excel in both areas. I have observed that these machines can operate at high speeds without compromising quality. The cutting speed directly correlates with the material's density and thickness. For thicker materials, I adjust the cutting parameters to ensure optimal performance. Increasing the laser power can enhance cutting speed, provided I keep other parameters constant.
The efficiency of these machines also stems from their ability to minimize waste. The focused laser beam allows for precise cuts, reducing the amount of scrap material generated during the process. This efficiency translates into cost savings and faster turnaround times for projects, which I find invaluable in meeting client demands.
Versatility in Materials
Another significant advantage of single-platform laser cutting machines is their versatility in processing various materials. I can work with a wide range of materials, including ferrous and non-ferrous metals, polymers, and even some non-metallic materials. Here’s a quick overview of the capabilities and limitations:
| Material Type | Capabilities | Limitations |
|---|---|---|
| Ferrous Metals | Mild steel, stainless steel | Highly reflective metals like copper can reduce efficiency. |
| Non-Ferrous Metals | Aluminum alloys | Polished surfaces of certain aluminum grades pose safety risks. |
| Polymers | Acrylic (PMMA), polycarbonate | Transparent materials require specific wavelengths for effective processing. |
| Thickness Capacity | 0.1mm to 25mm for metals | Cut quality deteriorates beyond optimal thickness, requiring alternative methods. |
| Non-Metallic Materials | Up to 50mm in some acrylics with CO2 lasers | Fiber lasers dominate in metal cutting, especially up to 20mm in mild steel. |
This versatility allows me to cater to diverse client needs, whether they require intricate designs in acrylic or robust cuts in stainless steel. However, I always consider the limitations of each material type to ensure the best results.
Comparison with Other Laser Cutting Technologies
Multi-Platform Systems
Multi-platform laser cutting systems offer distinct advantages over single-platform machines. They allow simultaneous loading and unloading during cutting, which significantly boosts production efficiency. In contrast, single-platform systems require unloading and loading during cutting, leading to increased downtime. Here’s a quick comparison of maintenance requirements and downtime impact:
| Machine Type | Maintenance Requirements | Downtime Impact |
|---|---|---|
| Single-Platform | Requires unloading and loading during cutting | Increased downtime, reduced production efficiency |
| Multi-Platform | Allows simultaneous loading/unloading during cutting | Significantly boosts production efficiency |
Traditional Laser Cutting Methods
Traditional laser cutting methods, such as CNC machining, often struggle with intricate features. The precision required for small geometries frequently exceeds their capabilities. In contrast, I find that laser systems excel in producing fine details without creating heat-affected zones. This superior precision allows for smoother edges and less material deformation. Traditional methods, like CNC shearing and flame cutting, often lead to rough processing and higher production costs due to their reliance on molds.
Emerging Technologies
Emerging technologies in laser cutting are shaping the future of manufacturing. For instance, high-power Cnc Laser cutting enhances efficiency and precision, supporting streamlined operations. Fiber lasers provide versatile solutions that can reduce costs and improve performance. Here’s a summary of some key advancements:
| Technology Type | Impact on Single-Platform Systems |
|---|---|
| High-Power CNC Laser Cutting | Enhances efficiency and precision, supporting streamlined operations. |
| Fiber Lasers | Provides versatile solutions that can reduce costs and improve performance. |
| Ultrafast Lasers | Increases speed and accuracy, enabling intricate designs previously impossible. |
| Automated Laser Cutting Systems | Boosts efficiency and minimizes human error through automation. |
| Hybrid Laser Cutting Machines | Combines different technologies for improved operational capabilities. |
| Green Laser Technology | Aligns with sustainability goals, appealing to manufacturers focused on reducing carbon footprints. |
| Advances in Beam Shaping | Improves cut quality and surface finishes, optimizing material use and enhancing product quality. |
These advancements promise to enhance the capabilities of single-platform systems, making them even more competitive in the evolving landscape of laser cutting technology.
Single-platform laser cutting machines stand out due to their precision, speed, and versatility. I appreciate how these machines adapt to various materials, enhancing manufacturing capabilities.
Looking ahead, I see exciting trends in this technology, such as:
- Ultrafast Lasers: Delivering exceptional precision with minimal heat.
- AI Integration: Enhancing efficiency through predictive maintenance.
- Hybrid Systems: Combining different laser types for greater adaptability.
These advancements promise to revolutionize the industry, making single-platform laser cutting even more efficient and effective.
FAQ
What materials can I cut with a single-platform laser cutting machine?
I can cut various materials, including metals, plastics, wood, and glass, depending on the laser type used.
How does single-platform laser cutting compare to traditional methods?
Single-platform laser cutting offers superior precision and speed, reducing waste and enhancing design capabilities compared to traditional methods.
Can I customize my laser cutting service?
Absolutely! I provide tailored solutions to meet specific project requirements, ensuring optimal results for each client's unique needs.
