What does a CNC cutting machine do?

You operate a CNC Cutting Machine to achieve precise and efficient material cutting with minimal manual effort. The global market for these machines nearly doubled from 2022 to 2030, as shown below. This growth reflects your industry's shift to advanced solutions like those seen at a Fiber Laser Cutting Machine Show.

Key Takeaways

• CNC cutting machines use computer control to cut materials with high precision and speed, reducing manual work and errors.
• You follow a clear process from designing parts in CAD software to automated cutting, which improves accuracy and safety.
• Different types of CNC machines suit various materials and tasks, helping you choose the best option for your project and budget.

How CNC Cutting Machines Work

Computer Control and Automation

You rely on advanced computer control systems to operate a Cnc Cutting Machine. TheMachine Control Unit (MCU) acts as the brain, translating your programmed instructions—often written in G-code—into precise movements. This system coordinates the cutting tool, coolant, and other machine parts to ensure everything works together smoothly. You use input devices like keyboards or USB drives to load your programs. Output devices, such as displays and alarms, keep you informed about machine status and errors.

You benefit from automation because it removes direct human operation of cutting tools. The CNC Cutting Machine moves with high precision, often in increments as small as 0.001 inches. Automated monitoring of temperature and coolant helps prevent breakdowns. Self-diagnosis features quickly identify issues, reducing downtime and human error. However, you must address challenges such as tool wear, programming complexity, and integration with other systems. Regular maintenance and software updates help you maintain peak performance and security.

Tip: Always keep your software updated and train regularly to maximize your CNC Cutting Machine’s efficiency and safety.

The Cutting Process

You start the cutting process by designing a 3D model using CAD software. Next, you generate tool paths and convert your design into G-code using CAM software. Simulation tools allow you to verify these paths, preventing costly mistakes. Once you transfer the G-code to the CNC Cutting Machine, the automated system takes over.

Here’s a typical sequence you follow:

1. Create a 3D model of your part in CAD software.
2. Generate tool paths and convert them to G-code using CAM software.
3. Simulate and verify the tool paths to avoid errors.
4. Transfer the G-code to the CNC Cutting Machine.
5. Set up the workpiece and secure it properly.
6. Select and install the correct cutting tools.
7. Start the automated cutting process.
8. Monitor the operation for quality and safety.
9. Inspect the finished product for accuracy.

You achieve much higher accuracy and speed compared to manual methods. For example, a CNC Cutting Machine can maintain a typical tolerance of ±0.001 inches, while manual machining usually achieves only ±0.005 inches. Cutting speeds are up to three times faster, and automatic tool changes take seconds instead of minutes. You also benefit from enhanced safety features, such as machine guards, emergency stops, and personal protective equipment requirements.

Types of CNC Cutting Machines

You can choose from several types of CNC Cutting Machines, each designed for specific tasks and materials:

• CNC Lathe & Turning Machines
• CNC Laser Cutting Machines
• CNC Milling Machines
• CNC Electric Discharge Machines (EDM)
• CNC Plasma Cutting Machines
• CNC Grinding Machines
• CNC Machines with Automatic Tool Changes

Each type offers unique capabilities. For example, laser cutting provides very high precision and clean edges, making it ideal for electronics and signage. Plasma cutting works best for thick, conductive metals and offers fast, cost-effective results. Waterjet cutting stands out for its ability to cut almost any material—including metals, stone, and glass—without heat distortion.

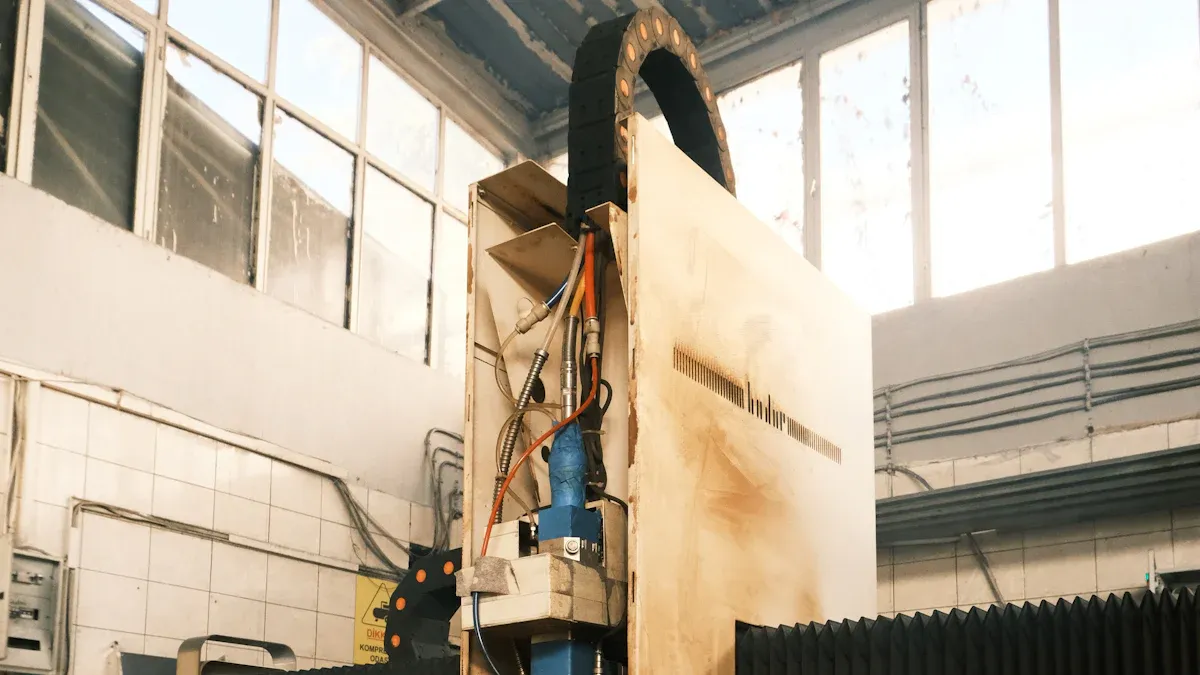

CNC Cutting Machine Applications and Materials

Materials CNC Cutting Machines Can Cut

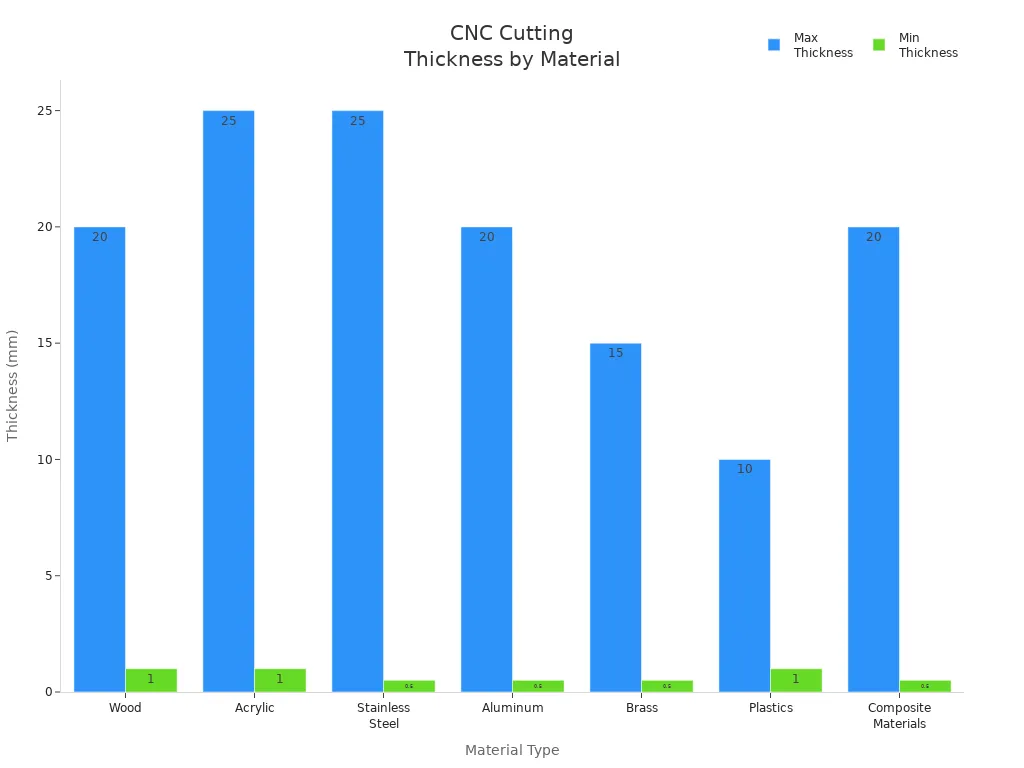

You can process a wide range of materials with a CNC Cutting Machine. Metals such as steel, aluminum, and titanium are common choices for high-strength parts. This versatility allows you to tackle projects in many industries. Material thickness varies by machine type and power. For example, entry-level plasma cutters handle metal up to 12 mm thick, while high-end models cut steel plates up to 60 mm. Fiber lasers cut stainless steel up to 25 mm and aluminum up to 20 mm. You can see the range of thicknesses in the chart below.

Key Industries and Uses

You find CNC Cutting Machines in many industries. In aerospace, you produce turbine blades, engine mounts, and wing components. Automotive applications include engine blocks, gearboxes, and brake system parts. Medical device manufacturing relies on CNC for surgical instruments and implants. Electronics companies use CNC to create circuit boards, connectors, and housings. Defense contractors depend on CNC for armored panels and weapon components. You also see CNC in consumer goods, marine, and industrial equipment production.

Advantages Over Other Cutting Methods

You gain several benefits by using a CNC Cutting Machine. Precision stands out, with tolerances as tight as 0.0005 inches. Automation reduces human error and ensures consistent quality. You save on labor costs and material waste by optimizing cutting paths. CNC machines support rapid prototyping and customization, letting you switch designs quickly. Environmental impact decreases because CNC produces less waste and consumes less energy than traditional methods. You also enjoy quieter, safer working conditions.

Tip: You can maximize cost savings by optimizing your designs for CNC machining, such as using rounded corners and avoiding deep pockets.

You achieve precise, efficient, and repeatable results with a CNC Cutting Machine.

• Automation enables you to complete projects faster and maintain consistent quality.
• You produce complex geometries with tight tolerances that manual methods cannot match.

Consider a CNC Cutting Machine for projects that demand accuracy, complexity, and high productivity.

FAQ

How do you maintain a CNC cutting machine?

You clean the machine regularly. You lubricate moving parts. You inspect tools for wear. You update software. You follow the manufacturer’s maintenance schedule for best results.

Is CNC cutting safe for beginners?

You stay safe by following instructions. You wear protective gear. You use machine guards. You read the manual. You ask for help if you feel unsure.
